Home > Products > Machine Vision > Area Scan Camera > MV-CH050-10U

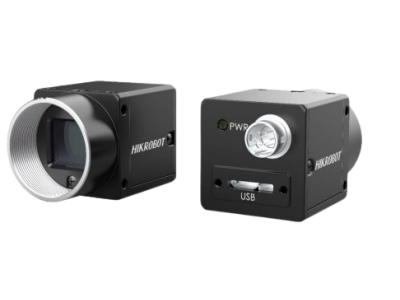

MV-CH050-10U

5 MP Area Scan Camera

HIKROBOT

  • Compact design with mounting holes on panels for flexible mounting from 4 sides.
  • Supports LSC, Sequencer, Super Palette, customized ROI, horizontal and vertical reverse image output.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.

Details

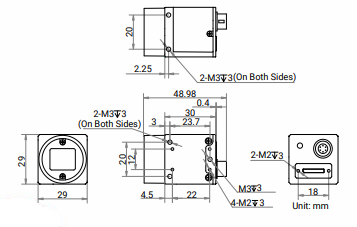

Dimension

Specifications

Type
CH Series
Resolution
5 MP
Frame Rate
74.1 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP40
Min Working Temperature
-10 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0
Certification
CE
KC
FCC
RoHS

Models

MV-CH050-10UC
Color
MV-CH050-10UM
Mono

Downloads

MV-CH050-10UM/UC Datasheet
Datasheet
