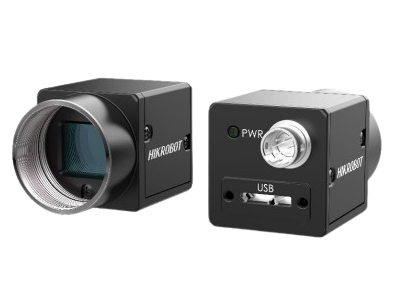

MV-CE200-11U

20 MP Area Scan Camera

HIKROBOT

  • Supports auto or manual adjustment of gain, exposure time, and manual adjustment of Gamma correction, LUT.
  • Adopts compact design for small spatial installation.
  • Supports hardware trigger, software trigger, free run and customized ROI to increase frame rate.
  • Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Details

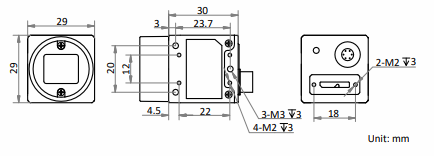

Dimension

Specifications

Type
CE Series
Resolution
20 MP
Frame Rate
19.2 fps
Data interface
USB3.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
USB3.0
Certification
CE
KC
FCC
RoHS

Models

MV-CE200-11UC
Color
MV-CE200-11UM
Mono

Downloads

MV-CE200-11UM/UC
Datasheet
