Home > Products > Machine Vision > Area Scan Camera > MV-CE050-31G

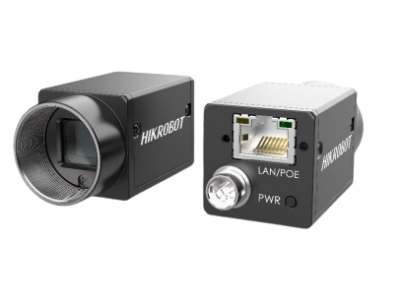

MV-CE050-31G

5 MP Area Scan Camera

HIKROBOT

  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Up to 128 MB local memory for burst transmission and retransmission.
  • Supports auto exposure control, LUT, Gamma correction, hardware trigger, software trigger, etc.
  • Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Details

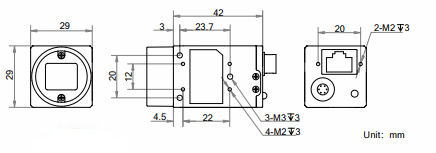

Dimension

Specifications

Type
CE Series
Resolution
5 MP
Frame Rate
24 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
9 VDC - 24 VDC
PoE
Certification
CE
KC
FCC
RoHS

Models

MV-CE050-31GC
Color
MV-CE050-31GM
Mono

Downloads

MV-CE050-31GM/GC
Datasheet
