MV-CB060-10U

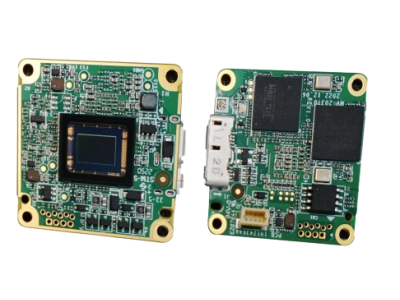

6 MP Board Level Camera

HIKROBOT

  • Compact design for flexible installation.
  • Supports auto or manual adjustment of gain, exposure time, and white balance, and manual adjustment of Gamma correction, LUT, etc.
  • Supports HDR function with different exposure time, gain, hardware trigger, software trigger, free run, etc.
  • Compatible with USB3 Vision Protocol, GenlCam standard, and the third-party software based on these protocol and standard.

Details

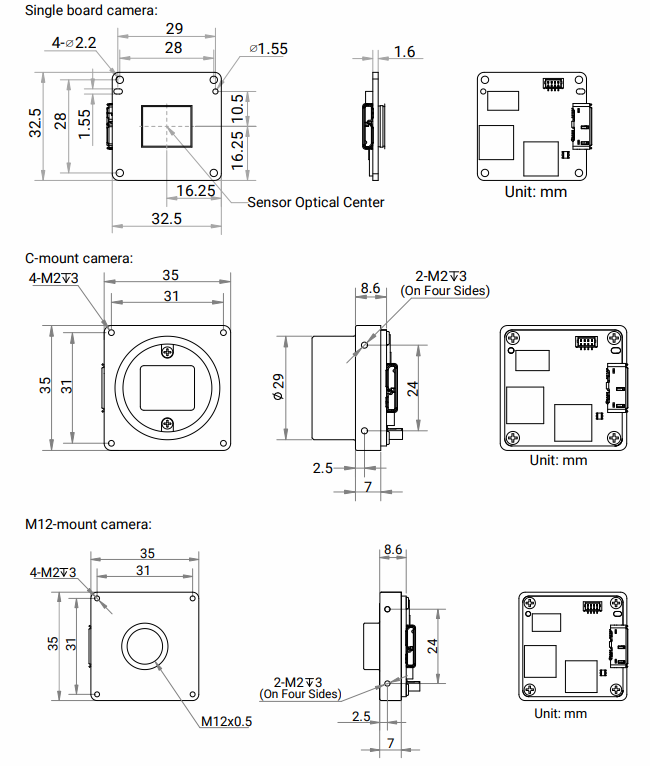

Dimension

Specifications

Type
CB Series
Resolution
6 MP
Frame Rate
60.9 fps
Data interface
USB3.0
Lens mount
C-Mount
M12-mount
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
USB3.0
Certification
CE
KC
FCC
RoHS

Models

MV-CB060-10UC-B
Color
MV-CB060-10UC-C
Color
MV-CB060-10UC-S
Color
MV-CB060-10UM-B
Mono
MV-CB060-10UM-C
Mono
MV-CB060-10UM-S
Mono

Downloads

MV-CB060-10UM/UC
Datasheet
