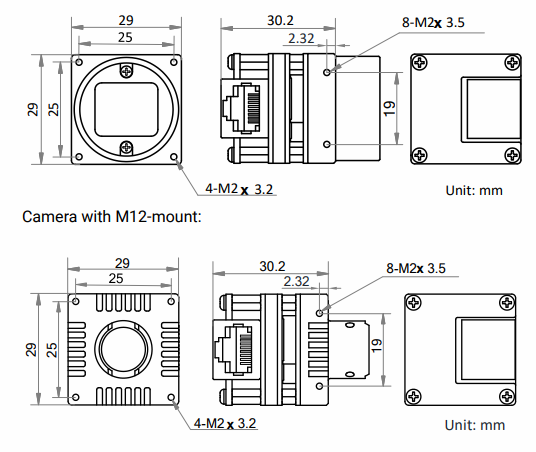

Dimension
MV-CB016-10G

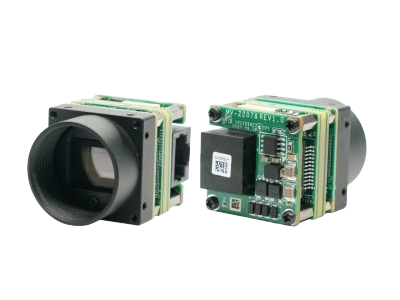

1.6 MP Board Level Camera
HIKROBOT
- Supports auto or manual adjustment of gain, exposure time, white balance, manual adjustment of Gamma correction, LUT, Binning, etc.
- Adopts noise reduction function to provide high quality images, GigE interface and max. transmission distance of 100 meters without relay.
- Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Details
Specifications
Type
CB Series
Resolution
1.6 MP
Frame Rate
65.2 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Fast Ethernet
Lens mount
C-Mount
M12-mount
M12-mount
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
9 VDC - 24 VDC
PoE
PoE
Certification
CE
KC
FCC
RoHS
KC
FCC
RoHS
Models
MV-CB016-10GC
Color
MV-CB016-10GC-C
Color
MV-CB016-10GC-S
Color
MV-CB016-10GM
Mono
MV-CB016-10GM-C
Mono
MV-CB016-10GM-S
Mono
