MV-CB013-A0U

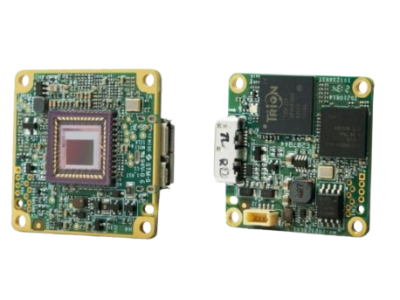

1.3 MP Board Level Camera

HIKROBOT

  • Compact design for flexible installation.
  • Supports auto or manual adjustment of gain, exposure time, white balance, Gamma correction, LUT, etc.
  • Adopts image interpolation algorithm for color cameras to have better color correction, USB3.0 interface to provide power supply and transmit data.
  • Compatible with USB3 Vision Protocol, GenlCam standard, and third-party software based on these protocol and standard.

Details

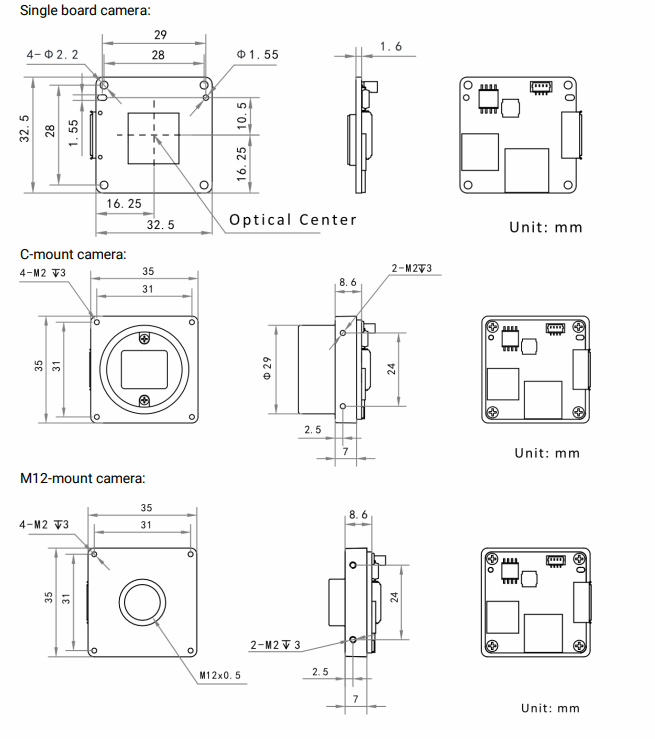

Dimension

Specifications

Type
CB Series
Resolution
1.3 MP
Frame Rate
201 fps
Data interface
USB3.0
Lens mount
C-Mount
M12-mount
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
USB3.0
Certification
CE
KC
FCC
RoHS

Models

MV-CB013-A0UC-C
Color
MV-CB013-A0UC-S
Color
MV-CB013-A0UM-B
Mono
MV-CB013-A0UM-C
Mono
MV-CB013-A0UM-S
Mono

Downloads

MV-CB013-A0UM/UC
Datasheet
