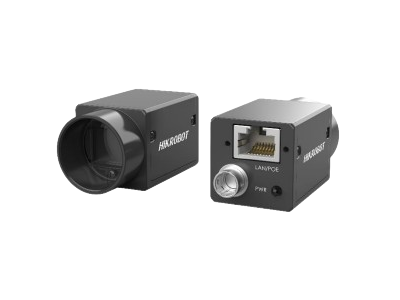

MV-CA050-10G

5 MP Area Scan Camera

HIKROBOT

  • Adopts GigE interface and max. transmission distance of 100 meters without relay.
  • Supports auto and manual adjustment for exposure control, LUT, Gamma correction, hardware trigger, software trigger, etc.
  • Up to 128 MB local memory for burst transmission and retransmission.
  • Compatible with GigE Vision Protocol V2.0, GenlCam Standard, and third-party software based on these protocol and standard.

Details

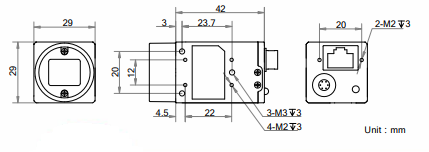

Dimension

Specifications

Type
CA Series
Resolution
5 MP
Frame Rate
24.1 fps
Data interface
Gigabit Ethernet
Fast Ethernet
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Power supply
12 VDC
PoE

Models

MV-CA050-10GC
Color
MV-CA050-10GM
Mono

Downloads

MV-CA050-10GM/GC
Datasheet
