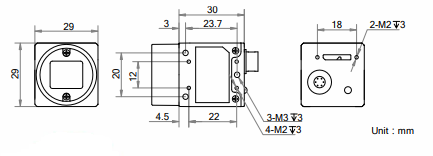

Dimension

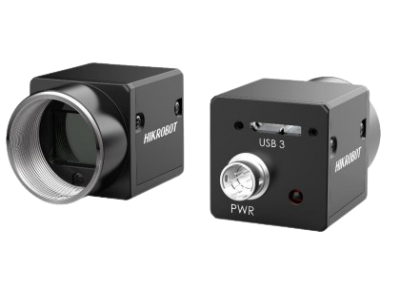

MV-CA003-21U
0.3 MP Area Scan Camera
HIKROBOT
- Supports hardware triggering, software triggering, free run mode, auto and manual adjustment for gain, exposure control, LUT, Gamma correction, etc.
- Adopts M2 screw holes for securing cable that connects USB3.0 interface.
- Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on these protocol and standard.
Details
Specifications
Type
CA Series
Resolution
0.3 MP
Frame Rate
814.5 fps
Data interface
USB3.0
USB2.0
USB2.0
Lens mount
C-Mount
Ingress Protection
IP30
Min Working Temperature
0 °C
Max Working Temperature
50 °C
Client software
MVS
Third-party software
Third-party software
Power supply
12 VDC
USB3.0
USB3.0
Models
MV-CA003-21UC
Color
MV-CA003-21UM
Mono
Downloads
MV-CA003-21UM/UC
