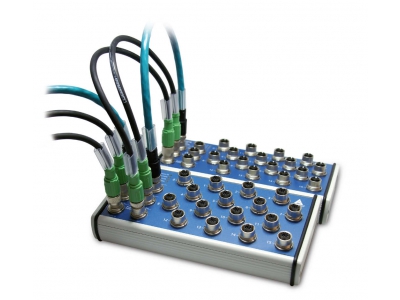

The Ethernet analog input system MSX-E3021 has 16 analog differential inputs, 16-bit, voltage or current inputs. 4 channels can be acquired simultaneously with 100 kHz. The system was developed for long-term measurement in the harsh industrial environment and thus has an extended memory of 4 GB. It has a robust normed metal housing with the degree of protection IP 65 and an extended temperature range from -40°C to +85°C. The ARM®9 32-bit processor allows the calculation of the acquired values. The Development Mode allows to customize applications individually. Through synchro- connection, several MSX-E systems can be cascade and synchronized with one another in the µs range.
MSX-E3021
Ethernet Analog Input System
ADDI-DATA GmbH
- 16 Analog Inputs, Differential
- Voltage or Current Inputs
- 16-bit Resolution
- Simultaneous Sampling of All Channels
- Optical Isolation 1000 V
- 4 GB Extended Memory
- 24 V Digital Trigger Input
Details
Specifications
Family
ADDI-DATA MSX
Unit Type
Standalone
Input Type
Voltage
Current
Current
Analog Inputs
16
Field Interface
Sync Pulse
Resolution
16-bit
Communication
Ethernet
Min Temperature
-25 °C
Max Temperature
85 °C
IP Rating
IP65
Models
MSX-E3021
16 Differential Inputs, 16-bit Resolution
Downloads
MSX-E3021 Ethernet Analog Input System
