The MS50 has been redesigned for more Force and more Speed. It has the same bolt pattern as the existing CS50, the new CS55, the new CS80 and the existing MS100.
It can move up to 250mm per second, with stroke ranges from 100 to 350mm

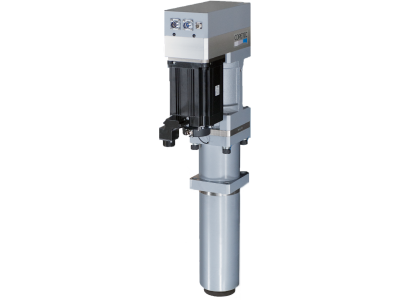

MS50
50 kN (5 Ton) Assembly Servo Press
Coretec
- maximum Force Range, 50kN (5 Ton)
- Stroke ranges available – 100mm, 200mm and 350mm
- Maximum actuator speed of 250 mm/sec.
- Cyclic loading up to 45kN without damage
- Special Stroke Range of 500mm
Details
Specifications
Max Force
50 kN
Max Speed
250 mm/s
Stroke
100 mm
200 mm
350 mm
400 mm
500 mm
200 mm
350 mm
400 mm
500 mm
Interface
Digital I/O
ProfiNet
DeviceNet
EthernetIP
CC-Link
ProfiNet
DeviceNet
EthernetIP
CC-Link
Models
MS50
Max. Speed 250mm/s
MS50-100BK
50kN Force Capacity Servo Press with 100 mm Stroke with Brake & M Load Holding
MS50-200BK
50kN Force Capacity Servo Press with 200 mm Stroke with Brake & M Load Holding
MS50-350BK
50kN Force Capacity Servo Press with 350 mm Stroke with Brake & M Load Holding
MS50-400BK
50kN Force Capacity Servo Press with 400 mm Stroke with Brake & M Load Holding, built to order
MS50-500BK
50kN Force Capacity Servo Press with 500 mm Stroke with Brake & M Load Holding, built to order
