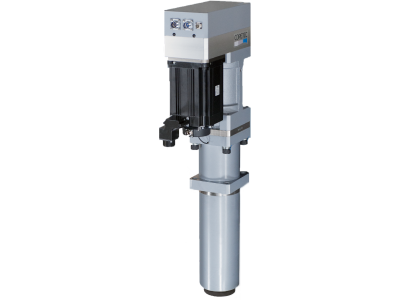

MS10M

10 kN (1 Ton) Assembly Servo Press

Coretec

  • maximum Force Range, 10kN (1 Ton)
  • Stroke ranges available – 100mm, 150mm and 250mm
  • Maximum actuator speed of 150 mm/sec.
  • Cyclic loading up to 7kN without damage

Specifications

Max Force
10 kN
Max Speed
100 mm/s
Stroke
100 mm
150 mm
250 mm
Interface
Digital I/O
ProfiNet
DeviceNet
EthernetIP
CC-Link

Models

MS10M-100BK
10kN ( 1 Ton), 100mm Servo Press
MS10M-250BK
10kN ( 1 Ton), 250mm Servo Press
