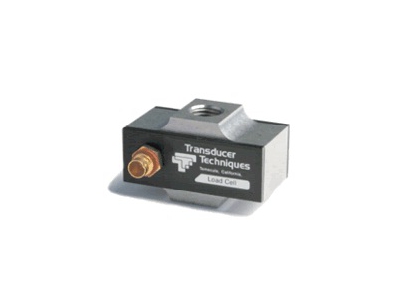

The model MLP Series load cells were designed with economy as first priority. They are a scaled down version of our successful LPO Series Load Cells. MLP-10 through MLP-300 are anodized aluminum and the MLP-500 through MLP-1K are made from 17-4ph heat treated stainless steel. The unique low profile design of the MLP Series provides excellent stability for in line applications for tension and/or compression, while saving space at the same time.
MLP
Low Profile Load Cell
Transducer Techniques
- Economical
- Tension & Compression
- Accuracy: ±0.25% R.O.
- Length: 38.2mm - 45.3mm
- Width: 13.7mm - 23.6mm
- Height: 19.0mm - 25.4mm
- Connection: 3m Integral Cable
Details
Specifications
Type
S-Type
Application
Tension & Compression
Full Scale
10 lbs
25 lbs
50 lbs
75 lbs
100 lbs
150 lbs
200 lbs
300 lbs
500 lbs
750 lbs
1000 lbs
25 lbs
50 lbs
75 lbs
100 lbs
150 lbs
200 lbs
300 lbs
500 lbs
750 lbs
1000 lbs
Output
2 mV/V
Precision
±0.25 % FS
Excitation
10 V DC
Min Temperature
-54 °C
Max Temperature
93 °C
Models
MLP-10
MLP-100
MLP-150
MLP-1K
MLP-200
MLP-25
MLP-300
MLP-50
MLP-500
MLP-75
MLP-750
