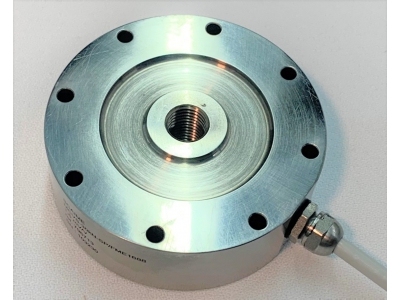

MCVS-10-20-30kN-SPFME1688

Universal Industrial Load Cell - Force Sensor

Scaime

  • Ranges from 10kN, 20kN & 30kN
  • Powered from 2 to 15 Vdc excitation
  • Precision of +/-0.2% of Full Scale
  • 6 Wire to minimize cable length errors
  • Stainless Steel housing, sealed to IP67

Specifications

Type
Pancake
Load Button
Output
1.5 mV/V
Precision
±0.2 % FS
Excitation
1 V - 15 V DC
Min Temperature
-20 °C
Max Temperature
70 °C

Models

MCVS-10-kN
MCVS-10kN-SPFME1688
MCVS-20kN
MCVS-20kN-SPFME1688
MCVS-30kN
MCVS-30kN-SPFME1688

Related

CPJ/CPJ2S

eNod4-T

The eNod4-T provides physical or theoretical weighing calibration, 4 set point management. It offers high resolution, fast response and flexible communication for Hopper, Silo & Tank Level Weighing.

GM80

The GM80 measuring amplifier can process strain gauge signals of ±3,3 mV/V and active signals of ±10 V and 0/4-20 mA. The versatile configurable data logger can store a series of measurements with date and time up to 15288 measured values.

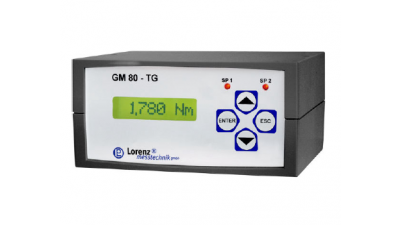

GM80-TG
