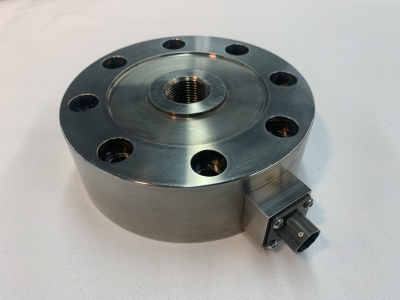

MCVP-50-111kN(FME1926-3)

Universal Load Cell - Force Sensor

Scaime

  • Force Ranges 50kN (10klbs), up to 111kN, (25klbs)
  • Stainless Steel housing, IP65 rating
  • 0.1 % F.S. Non-linearity
  • High Overload Capacity
  • 700 ohm bridge resistance for low power consumption
  • 6 pin MS style connector

Specifications

Type
Pancake
Rod Type
Full Scale
5000 lbs
10000 lbs
15000 lbs
25000 lbs
Output
2 mV/V
Precision
±0.1 % FS
Excitation
1 V - 15 V DC

Models

MCVP-111kN
111,000N, 25,000lbs
MCVP-22.5kN
22,500kN, 5000lbs
MCVP-50kN
50,000N, 11,000lbs
MCVP-70kN
70,000N, 15000lbs.

Accessories

AG003-ZA
Cable Assembly, Connector PT06F-10-6S (A+exc,B+sen,C-sen,D-exc,E-sig,F+sig) to open leads, in lengths from 1ft to 100ft, (custom termination connections available)
AG176-ZA
Cable Assembly, Connector PT06F-10-6S (A+exc+sen, B-sig, C+sig+cal, D -exc - sen); to open leads, in lengths from 1ft to 100ft, (custom termination connections available)

Related

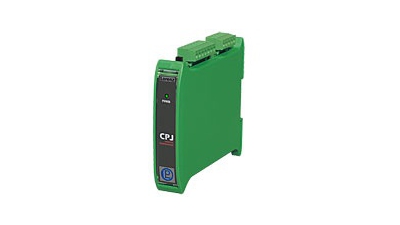

CPJ/CPJ2S
