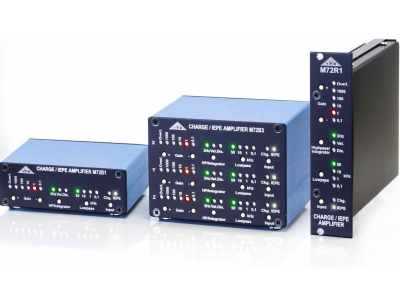

M72B1 / M72B3 / M72R1

1 - 3 Chn Desktop / Rack Mount Amplifiers for IEPE and Charge Amplifiers

MMF

  • Gain Selections: 0,1 / 1 / 10 / 100 / 1000 mV/pC; 0 / 20 / 40 / 60 dB
  • single and double integrators
  • Low pass filters: 0.1 / 1 / 10 / 50 kHz
  • High pass filters: 0.1 / 3 Hz
  • Input & Output BNC connectors
  • USB interface on M72R8 Rack Case
  • Power Supply: 7-30Vdc, 115 Vac Adaptor

Specifications

Input Type
0 - 10 V AC
Piezoelectric (IEPE)
# of Inputs
1
3
Output Type
±10 V DC
Max Bandwidth
50 kHz
Supply Power
9 V DC (Battery)
24 - 30 V DC
115 V AC

Models

M72B1
Single Chn IEPE and Charge Desktop Amplifier
M72B3
Three (3) Chn IEPE and/or Charge Desktop Amplifier
M72R1
Single Chn IEPE and/or Charge Rack Mount Amplifier

Accessories

MQ20
Charge attenuator -20 dB
MQ40
Charge attenuator -40 dB
