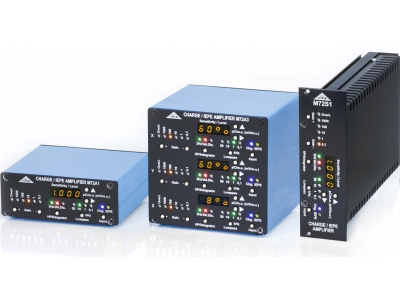

M72A1 / M72A3 / M72S1

1 – 3 channel Desktop / Rack Mount charge or IEPE Signal Conditioners

MMF

  • Gain Selections: 0,1 / 1 / 10 / 100 / 1000 mV/pC; 0 / 20 / 40 / 60 dB
  • Single and Double Integrators
  • Low pass filters: 0.1 / 1 / 10 / 50 kHz
  • High pass filters: 0.1 / 3 Hz
  • 4 digit mV or pC LED display(s)
  • Input & Output BNC connectors
  • USB interface on M72S8, Rack Case

Specifications

Input Type
0 - 10 V AC
Piezoelectric (IEPE)
# of Inputs
1
3
Output Type
±10 V DC
Max Bandwidth
50 kHz
Supply Power
9 V DC (Battery)
24 - 30 V DC
115 V AC

Models

M72A1
Single Channel Desktop Amplifier for Charge or IEPE Sensors
M72A3
Three Channel Desktop Amplifier for Charge or IEPE Sensors
M72S1
Single Channel Rack Mount Amplifier for Charge or IEPE Sensors

Accessories

MQ20
Charge attenuator -20 dB
MQ40
Charge attenuator -40 dB
