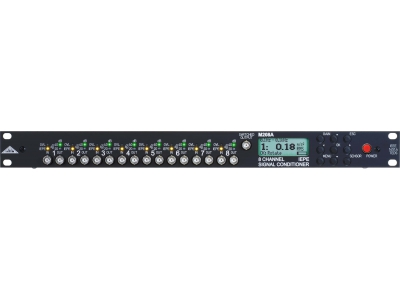

M208A

8-Channel IEPE Signal Conditioner

MMF

  • Measurement and display of RMS and peak values.
  • Wide frequency range (Bandwidth) from 0.1 Hz to 100 kHz
  • Incremental gain of 0.1 to 1000 for input / transducer sensitivity.
  • Vibration monitoring with relay outputs.
  • Relay output with adjustable trip levels
  • Remote measurement via Ethernet interface and web browser.
  • TEDS support IEEE 1451.4 with automatic transducer sensitivity normalization

Details

There is PC control of up to 8 Conditioners (64 chns) via serial interfaces (via daisy chain). ASCII command set for PC control software (included).

There is a Sub-D socket for outputs 1 to 8 on the rear panel. Plug-in Modules provide Low Pass and High Pass Filter ing.

Operates from a 115Vac adaptor or 10-28 Vdc power.

Specifications

Input Type
Piezoelectric (IEPE)
# of Inputs
8
Output Type
±10 V DC
Max Bandwidth
100 kHz
Supply Power
10 - 28 VDC

Models

M208A
8 Channel Signal Conditioning

Accessories

FB2
Plug-in low pass filters
FB3
Plug-in high pass filters
FBD
Double integrator plug-in modules
FBV
Single integrator plug-in modules
