LWO

Thru-Hole

Transducer Techniques

Strain Gauge Based
Compression
Accuracy: ±5.0% R.O.
Outer Diameter: 21.6mm - 95.3mm
Inner Diameter: 4.9mm - 51.8mm
Height: 8.9mm - 34.8mm
Connection: 3m Integral Cable

Details

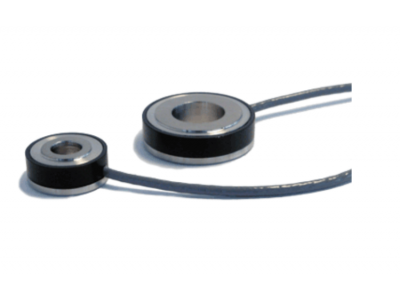

The LW0 Series are washer shaped, strain gauge based load cells. Our stocked ranges from 2,400 through 300,000 lbs. compression are made from 17-4ph heat treated stainless steel and are matched to bolt diameters and their specific load characteristics. Modifications of diameters, thicknesses, or load range to a specific diameter for OEM applications are welcomed. The sensing element incorporates bonded foil strain gauges of the highest quality and are sealed for protection against most industrial environments.

Specifications

Type

Thru-Hole

Application

Compression

Full Scale

2400 lbs
4000 lbs
7000 lbs
10000 lbs
14000 lbs
20000 lbs
25000 lbs
30000 lbs
45000 lbs
60000 lbs
80000 lbs
125000 lbs
190000 lbs
260000 lbs
300000 lbs

Output

2 mV/V

Precision

±5.0 % FS

Excitation

10 V DC

Min Temperature

-54 °C

Max Temperature

93 °C

Models

LWO-300

LWO-10

LWO-125

LWO-14

LWO-190

LWO-2

LWO-20

LWO-25

LWO-260

LWO-30

LWO-4

LWO-45

LWO-60

LWO-7

LWO-80

LWO-80A

Downloads

LWO Load Washer

Datasheet
