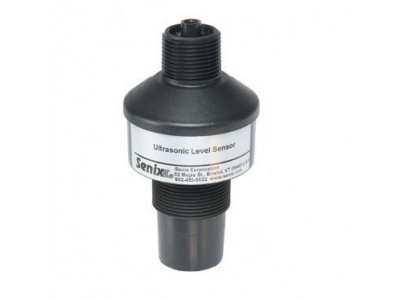

LVL-500

Ultrasonic Level Sensor

Senix Corporation

  • Ultrasonic
  • Non-Contact
  • SenixVIEW Software Included
  • 5 simultaneous outputs, plus serial data
  • RS-232 or RS-485 networks, up to 32 sensors
  • PNP(sourcing) or NPN(sinking) switch outputs
  • Cylindrical Profile Housing

Specifications

Type
Ultrasonic
Full Scale
35 ft
Output
0 - 5 V DC
0 - 10 V DC
4 - 20 mA
Serial
Precision
±0.20 % FS
Excitation
10 - 30 V DC
IP Rating
IP68
NEMA 4X
NEMA 6P
Min Temperature
-40 °C
Max Temperature
70 °C

Models

LVL-500-232
Serial RS-232 Interface (PC COM port or port compatible)
LVL-500-485
Serial RS-485 Interface (allows addressable multi-sensor networks)

Downloads

LVL-500
Datasheet
