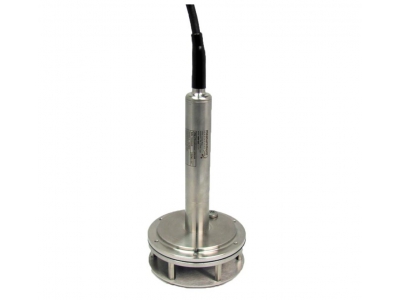

The LTB is a ±0.25% FSO static accuracy submersible hydrostatic level transducer with a 2.75" elastomeric diaphragm and protective cage specifically designed to meet the rigorous environments encountered in liquid level measurement and control. Measurement Specialties LT Level Transducers utilize a highly accurate pressure sensor assembly specifically designed for hostile fluids.
LTB
Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel Housing
- Wide Mouth Non-fouling Protective Cage
- IP 68, NEMA 6P
- Multiple Analog Outputs
Details
Specifications
Type
Fully Submersible
Full Scale
11.5 - 115 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±0.25 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
LTB
Submersible Level Transducer
