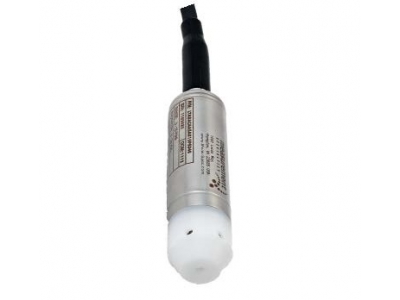

The LTA is a 0.25% FS static accuracy, 1.0" diameter submersible hydrostatic level transducer specifically designed to meet the rigorous environments encountered in liquid level measurement and control. Measurement Specialties LT Level Transducers utilize a highly accurate pressure sensor assembly specifically designed for hostile fluids.
LTA
Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented, Sealed or Absolute Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Liquids
- Welded 316 Stainless Steel Housing or Titanium Housing (optional)
- IP 68, NEMA 6P
- Multiple Analog Outputs
- 1-Year Warranty or 2-Year warranty (optional)
Details
Specifications
Type
Fully Submersible
Full Scale
2.3 - 692 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±0.10 % FS
±0.25 % FS
±0.25 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
LTA
Submersible Level Sensor
Downloads
LTA Submersible Level Transducer
