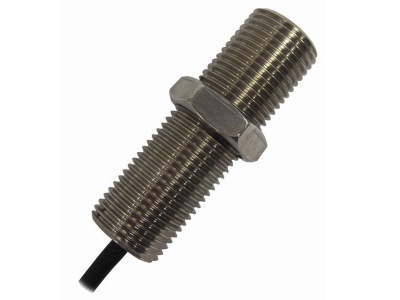

LCZ

Hall-Effect Zero Speed Sensor

  • Hall-Effect Sensor
  • Stainless Steel
  • Protection Class: IP68
  • Mounting Thread: 5/8-18 UNF-2A or 3/8-24 UNF-2A
  • Connection: MS3106 or 20 AWG Teflon-Insulated Leads
  • Simple Installation
  • Omni-Directional to Target Orientation

Specifications

Type
Hall Effect
Max Frequency
15 kHz
Mounting
3/8-24 UNF-2A
5/8-18 UNF-2A
Connection
24 AWG Leads
Min Temperature
-40 °C
Max Temperature
125 °C

Models

LCZ260
3/8-24 UNF-2A Thread, 50mm Thread Length, 24 AWG Leads
LCZ260-30
3/8-24 UNF-2A Thread, 76mm Thread Length, 24 AWG Leads
LCZ460
5/8-18 UNF-2A Thread, 50mm Thread Length, 24 AWG Leads
LCZ460-30
5/8-18 UNF-2A Thread, 76mm Thread Length, 24 AWG Leads

Downloads

LCZ Hall-Effect Zero Speed Sensor
Datasheet
