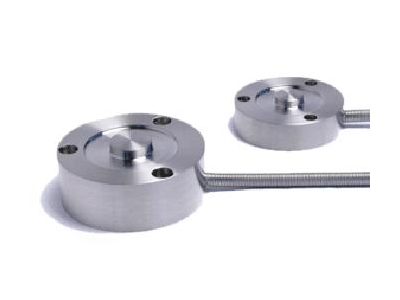

The LBC Series (Load Button) load cells are offered for compression only applications where space is limited. The matching surface must be flat and at least the diameter of (D1). The loading diameter (D2) is slightly convex for accurate load distribution. Counter bored mounting holes are provided for fastening down from the top. These sensors are manufactured from heat treated 17-4ph stainless steel.
LBC
Compression
Transducer Techniques
- Compression
- Accuracy: ±0.60% R.O.
- Outer Diameter: 25.4mm - 75.9mm
- Height: 10.2mm - 38.1mm
- Connection: 3m Integral Cable
- Stainless Steel
Details
Specifications
Type
Load Button
Application
Compression
Full Scale
100 lbs
250 lbs
500 lbs
750 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
15000 lbs
20000 lbs
30000 lbs
50000 lbs
250 lbs
500 lbs
750 lbs
1000 lbs
2000 lbs
3000 lbs
5000 lbs
10000 lbs
15000 lbs
20000 lbs
30000 lbs
50000 lbs
Output
2 mV/V
Precision
±0.60 % FS
Excitation
10 V DC
Min Temperature
-54 °C
Max Temperature
93 °C
Models
LBC-100
LBC-100A
LBC-10k
LBC-15k
LBC-1k
LBC-20k
LBC-250
LBC-2k
LBC-30k
LBC-3k
LBC-500
LBC-50k
LBC-5k
LBC-750
