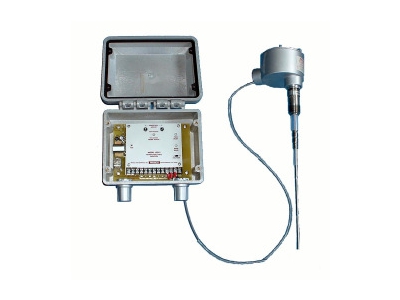

L3541

Remote Point Level Controller

  • RF Impedance
  • Probe Based
  • Compatible with L850 & L860 Series Probes
  • Wide Variety of Liquid & Solid Media
  • Vessel Connection size: L850 Series: 3/4" NPT; L860 Series: 1" NPT;
  • Cast Aluminum & Thermoplastic Housing
  • Thermoplastic Housing: NEMA 1-3, 3S, 4, 4X, 12, 13

Details

PRINCO’s L3541 level controller gives you the optimum combination of reliability, sensitivity, features, and cost. Conformally coated electronics, NULL-KOTE™ circuitry, explosion-proof / weatherproof enclosures, ROLLOCK™ probe construction and our unique 10 Year Warranty mean the ultimate in reliability. Excellent sensitivity, coupled with stability of 1 picofarad over the entire operating range, gives you a true set and forget installation.

L3541 controllers are used with NULL-KOTE™ probes, available in a wide variety of lengths and designs to fit every application. Princo, one of the pioneers of RF level sensing technology, has provided accurate, dependable, long lived service for thousands of applications in all types of industries, worldwide for more than 4 decades.

Specifications

Type
Probe Contact
Full Scale
1 - 5 ft
Output
Relay
Excitation
12 - 34 V DC
95 - 135 V AC
205 - 250 V AC
IP Rating
NEMA 1
NEMA 2
NEMA 3
NEMA 3S
NEMA 4
NEMA 4X
NEMA 7
NEMA 9
NEMA 12
NEMA 13
Min Temperature
-184 °C
Max Temperature
260 °C

Models

L3541
Remote Point Level Controller
L853
Standard Probe
L854
Probe for non-conductive, low-viscosity liquids
L855
Point Level Probe
L857
Point Level Probe
L861
Fly Ash Probe
L862
Short Probe for rugged service
L863
Heavy Duty Standard Probe

Downloads

L3541 Remote Point Level Controller
L800 Probes
