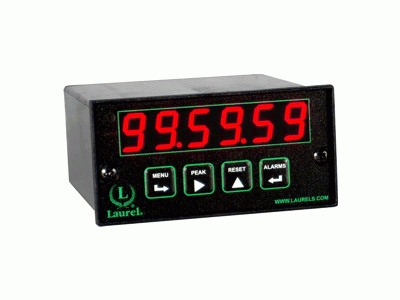

L-QD

Quadrature Encoder Position & Rate Meter

Laurel Electronics Inc.

  • Accepts differential or single-ended 5V logic from quadrature encoders
  • Encoder pulse rate to 250 kHz
  • Optional I/O, Ethernet, USB, RS232, RS485, Ethernet-to-RS485 converter
  • Optional relay outputs, dual or quad relays
  • Optional isolated analog output: 4-20 mA, 0-20 mA, 0-10V, -10 to +10V
  • Power Input, 85-264 Vac or 10-48 Vdc

Specifications

Mounting
Panel Mount
Input Types
Dual Pulse
Outputs
0/4-20ma
+/-10Vdc
RS232/485
Digital / Relay

Models

L60010QD
Encoder Input with analog output
