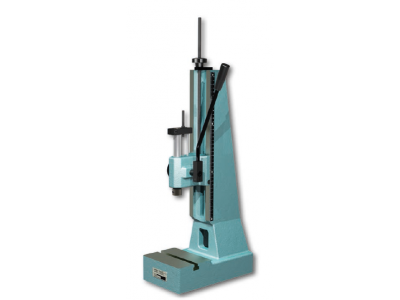

L-APZ T2-100

Manual Rack and Pinion press

Mäder Pressen

  • Manual Rack and Pinion press
  • Capacity: 2.5 kN
  • Working stroke: 100 mm
  • Throat: 80 mm
  • Daylight: 55 - 390 mm
  • Table size: 157 x 115 mm
  • Ram bore Ø x Depth: 10H7 x 25 mm

Details

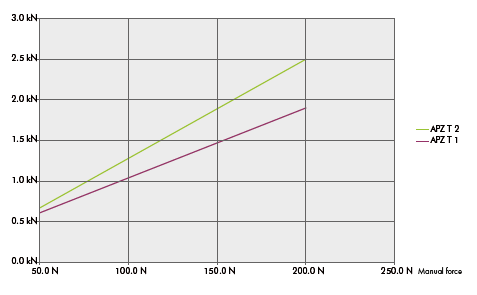

APZ range

mäder rack and pinion presses transmit their force
constantly over the whole stroke length. The direct
transmission of force via the manual lever allows fine
control. Rack and pinion presses are therefore used
where a constant force characteristic over a longer
stroke is required.

Manual lever with ergonomic user comfort

- Can be turned through 360°: adaptable for any
body size and application.

- Lever angled to the side: free view of work area
and ergonomically comfortable position.

- R/L Version: simple and easy conversion for lefthanders
without losing the tool setting. Ideal for job
sharing on one press.

Specifications

Type of Press
Rack and Pinion Press
Capacity
2.5 kN
Working Stroke
100 mm
Daylight Start
55 mm
Daylight End
390 mm
Table Size
157 x 115 mm
Ram Dimensions
10H7 x 25 mm
Ram Size
25 mm

Models

L-APZ T 2-100 TB
L-APZ T 2-100 with Table bore 12H7
L-APZ T 2-100 TB HS
L-APZ T 2-100 with Table bore 12H7 and Return travel lock
L-APZ T 2-100 TB HS MICRO
L-APZ T 2-100 with Table bore 12H7, Return travel lock and Micrometer stop
L-APZ T 2-100 TB HS MICRO Z
L-APZ T 2-100 with Table bore 12H7, Return travel lock, Micrometer stop and Counter
L-APZ T 2-100 TB HS Z
L-APZ T 2-100 with Table bore 12H7, Return travel lock and Counter
L-APZ T 2-100 TB MICRO
L-APZ T 2-100 with Table bore 12H7 and Micrometer stop
L-APZ T 2-100 TB MICRO Z
L-APZ T 2-100 with Table bore 12H7, Micrometer stop and Counter
L-APZ T 2-100 TB Z
L-APZ T 2-100 with Table bore 12H7 and Counter
L-APZ T2-100
L-APZ T2-100 HS
L-APZ T2-100 with Return travel lock
L-APZ T2-100 HS MICRO
L-APZ T2-100 with Return travel lock and Micrometer stop
L-APZ T2-100 HS MICRO Z
L-APZ T2-100 with Return travel lock, Micrometer stop and Counter
L-APZ T2-100 HS Z
L-APZ T2-100 with Return travel lock and Counter
L-APZ T2-100 MICRO
L-APZ T2-100 with Micrometer stop
L-APZ T2-100 MICRO Z
L-APZ T2-100 with Micrometer stop and Counter
L-APZ T2-100 R/L
L-APZ T2-100 Left/right-hander version
L-APZ T2-100 R/L MICRO
L-APZ T2-100 Left/right-hander version with Micrometer stop
L-APZ T2-100 R/L TB
L-APZ T2-100 Left/right-hander version with Table bore 12H7
L-APZ T2-100 R/L TB MICRO
L-APZ T2-100 Left/right-hander version with Table bore 12H7 and Micrometer stop
L-APZ T2-100 Z
L-APZ T2-100 with Counter
