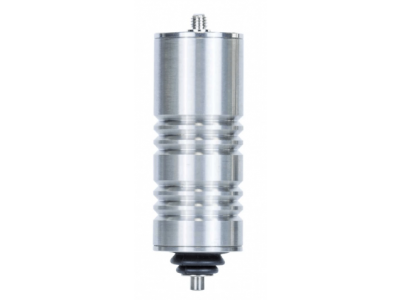

KST94C-4N

Air Actuated Vibration / Accelerometer Probe

MMF

  • Suited for automated vibration measurement
  • Movable tip guided by air damped piston / cylinder system
  • Linear frequency range by frictionless movement of the sensing element
  • Constant tip pressure by spring suspension guarantees reproducible measuring results
  • Low distortion
  • Low sensitivity for environmental vibration
  • Long life expectancy: over 10 million test cycles

Details

The KST94C-4N, mainly used for automated vibration testing in mass production processes. Features a movable tip, can be approximated to the test object. A sophisticated damping system provides excellent reproducibility and suppression of environmental vibration. This model has an outstanding life expectancy of over 10 million test cycles.

Specifications

Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
20 g
Output
100 mV/g
Material
Stainless Steel
Mounting
Screw
Connection
10-32 Micro Coaxial
Max Temperature
80 °C

Models

KST94C-4N
Probe Accelerometer

Accessories

009-UNF-BNC-1,5
Low-noise cable UNF 10-32 / BNC; 1,5 m
009-UNF-UNF-1,5
Low noise cable UNF 10-32 / UNF 10-32; 1,5 m
010-UNF-BNC-10
Low-noise cable UNF 10-32 / BNC; 10 m
010-UNF-BNC-5
low noise, UNF 10-32 to BNC, 5 m, Ø 2,7 mm, 120 °C
017
Adapter UNF 10-32 (fem.) to BNC (male)
KST94-CA
VC120 Calibration Adapter for KST94
M14
Vibration monitoring
M29
IEPE supply module

Downloads

KST94C-4N Datasheet
Datasheet
