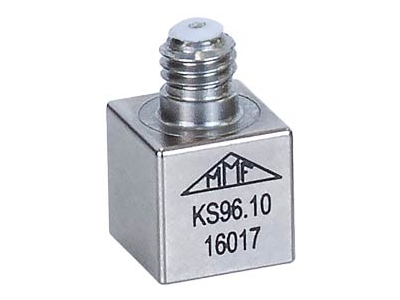

KS96B / KS97B

Miniature Uni-Axial Accelerometer

MMF

  • IEPE output: precision accelerometer with shear ceramics
  • Sensitivity: 10mV/g to 100mV/g
  • Well suited for Modal and Structural Analysis
  • Frequency Response: 0.2Hz to 46kHz, -3db
  • Operating Temperature: -20 to 120 deg.C
  • Easy mounting by cubic case with M3 thread
  • Versions with vertical and horizontal output

Specifications

Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
50 g
500 g
Output
10 mV/g
100 mV/g
Material
Stainless Steel
Aluminum
Mounting
Adhesive
Connection
10-32 Micro Coaxial
Max Temperature
120 °C

Models

KS96B10
Miniature Uni-axial Cube Accelerometer, Axial Connector, 10mV/g, +/-500g range
KS96B100
Miniature Uni-axial Cube Accelerometer, Axial Connector, 100mV/g, +/-60g range
KS97B10
Miniature Uni-axial Cube Accelerometer, Radial Connector 10mV/g, +/-500g range
KS97B100
Miniature Uni-axial Cube Accelerometer, Radial Connector 100mV/g, +/-60g range

Downloads

KS96B / KS97B
Datasheet
