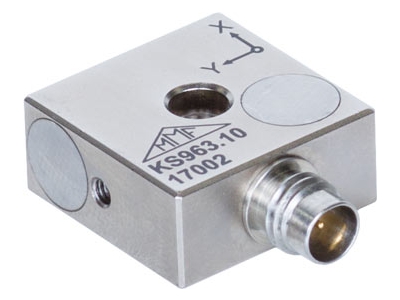

KS963B

Triaxial Accelerometer

MMF

  • Output: IEPE with optional TEDS
  • Sensitivity: 10mV/g & 100mV/g
  • Connector: 4 pin, 1/4-28 UNF, male
  • Linear frequency range: 0.2 to 18000Hz (-3 dB)
  • Weight: 8.5 gms & 11 gms

Specifications

Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
50 g
500 g
Output
10 mV/g
100 mV/g
Material
Aluminum

Models

KS963B10
Range 500g
KS963B100
Range 60g

Accessories

027
Calibration adapter for the triaxial accelerometers KS963 / KS973
034-B711f-BNC:
Adapter cable from Binder 711 to 3 BNC plugs, 0.5 m
038
Instant glue
091-CMR-B711-3
IEPE cable for triaxial accelerometers with 1/4″-28 UNF and Binder 711 connectors
141B
Adapter for measurements with accelerometers on curved surfaces
143B
Hand-held adapter for measurements on curved surfaces, M2,5 screw attachment
308
Magnetic base M3, large
329
Isolated mounting pad for adhesive attachment M3, large
M208A
8-channel IEPE conditioner
M29
IEPE supply module
M72A3
Charge Amplifier / IEPE Amplifier
