KS963B100-S

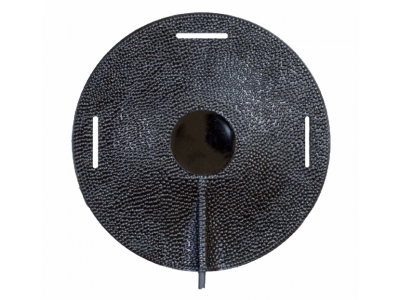

Triaxial accelerometer built into flexible rubber pad
For measurement of human exposure to whole-body vibration to ISO 2631, ISO 8041, ISO 10326-1 and ISO 7096
Includes electronic data sheet (TEDS; IEEE 1451.4; Template 25 w. DS2431)
Sensor removable from pad for calibration

Triaxial transducer with rubber pads for measuring whole-body vibration in accordance with ISO 2631, ISO 8041, ISO 10326-1, and ISO 7096.

The sensor can be removed from the cushion for calibration.

Contains an electronic data sheet (TEDS).

Type

Voltage Mode (IEPE)

Material

Stainless Steel

Mounting

Place on seat or strap

Connection

Binder 711
4 pins

Min Temperature

-20 °C

Max Temperature

80 °C

KS963B100-S

Seat Pad Accelerometer
