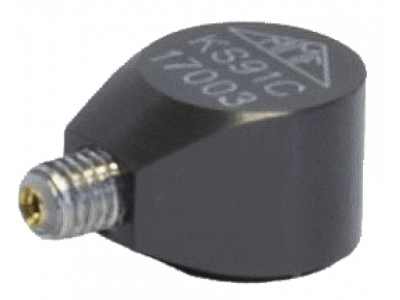

KS91C

Sub-Miniature IEPE Accelerometer

MMF

  • IEPE voltage output for low mass test objects
  • Wide dynamic range
  • Low temperature coefficient
  • High resonant frequency
  • Connector with replaceable cable
  • insulated base avoiding ground loops

Specifications

Type
Voltage Mode (IEPE)
# of Axis
1
Full Scale
500 g
Output
10 mV/g
Material
Stainless Steel
Mounting
Adhesive
Connection
2-Pin Axial Connector
M3 socket
Radial
Max Temperature
120 °C
Lower frequency limit (3 dB)
0.3 Hz
Upper frequency limit (3 dB)
37 kHz

Models

KS91C
Miniature Uni-axial Tear-Drop Accelerometer, Radial Connector 10mV/g, +/-600g range
KS93
Sub-Miniature Uni-axial Accelerometer, Radial Connector 5pC/g, +/-6000g range

Accessories

002
Adhesive wax
009-SUB-BNC-1,5
Low-noise cable Subminiature / BNC; 1,5 m
009-SUB-UNF-1,5
Low-noise cable Subminiature / UNF 10-32; 1,5 m
009/T-SUB-UNF-1,5
High-temperature low-noise cable Subminiature / UNF 10-32; 1,5 m
016
Coupler 2 x UNF 10-32
017
Adapter UNF 10-32 (fem.) to BNC (male)
025
Adapter UNF 10-32 to TNC
038
Instant glue
039
Removal tool for KS91C with adhesive mounting
117
Adapter UNF 10-32 to BNC
M208A
8-channel IEPE conditioner
M29
IEPE supply module
M72A1
Charge Amplifier / IEPE Amplifier
