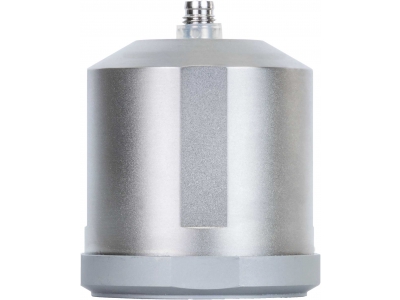

KS823B

High Sensitivity Tri-axial Accelerometer

MMF

  • Sensitivity: 500mV/g
  • Measuring range: ±12 g
  • Linear frequency range: 0.07 .. 6000 Hz, (±3 dB)
  • Protection grade: IP67
  • Connector: Radial Binder 718
  • Weight: 365 g

Specifications

Type
Voltage Mode (IEPE)
# of Axis
3
Full Scale
10 g
Output
500 mV/g
Material
Stainless Steel

Models

KS823B

Accessories

034-B711f-BNC:
Adapter cable from Binder 711 to 3 BNC plugs, 0.5 m
088-B718G-B711-5
IEPE cable for triaxial accelerometers with Binder 718 and Binder 711 connectors
508
Rare-earth magnetic base for flat and curved surfaces, M8 (fem.)
529
Wall and ceiling adapter for KS823B, without screw ring
629
Wall and ceiling adapter for KS823B, with screw ring
729
Tripod floor plate for accelerometers
M208A
8-channel IEPE conditioner
M33
IEPE amplifier module
M72A3
Charge Amplifier / IEPE Amplifier

Related

034B711f-BNC

This cable is for IEPE, can be provided in lengths from 3 ft. (1 m) up to 15 ft. (5 m).

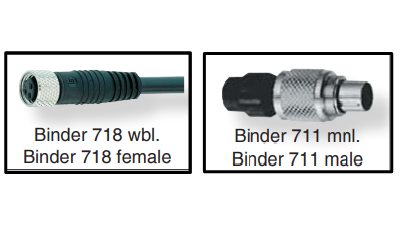

088-B718G-B711-5 Binder 718 -Binder 711 connector

This cable is for IEPE, can be provided in lengths of 15 ft. (5 m).

M208A

Signal conditioning in laboratory or field with IEPE compatible piezoelectric sensors for acceleration, force or pressure & IEPE microphones. An Excellent flexibility, performance & cost effective solution for Front Ends of PC based data acquisition.

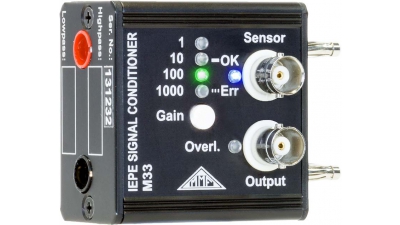

M33

This provides the Power supply and signal conditioning for IEPE sensors in a Compact, Flexible & Robust Module, that provides Signal conditioning for dynamic measurements with IEPE transducers.

M72A1 / M72A3 / M72S1

Single and 3 channel Signal Conditioning for Piezoelectric transducers with charge or IEPE outputs, that provide Amplification, filtering & integration in Desktop or Rack modules.

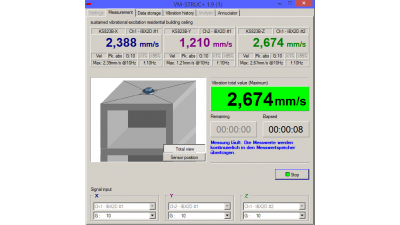

VM-STRUC

The latest version of VibroMetra software can measurement and evaluation of vibrations in buildings to DIN 4150-3 for the determination of their effects on structures. Recording of vibration events and real-time signals.

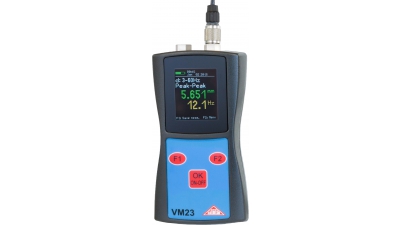

VM23
