These piezoelectric vibration transducers are designed for harsh industrial environments. They feature protection against dust and water, along with insulated mounting bases to prevent ground loops that can introduce noise into the sensor signal, particularly near high-power equipment.

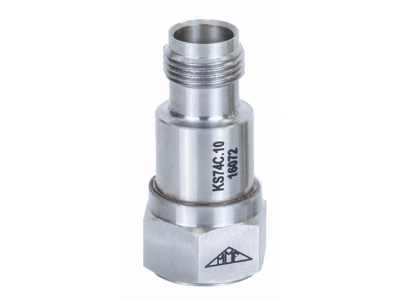

KS74C100
Industrial Accelerometer
MMF
- Two sensitivity versions (10 and 100 mV/g)
- Low weight
- With insulated base avoiding ground loop problems
- Rugged stainless steel case
Details
Specifications
Type
Voltage Mode (IEPE)
Material
Stainless Steel
Mounting
M5 Thread
Connection
TNC
Axial
Axial
Min Temperature
-30 °C
Max Temperature
120 °C
Ingress Protection
IP64
Lower frequency limit (3 dB)
0.13 Hz
Upper frequency limit (3 dB)
16 kHz
Models
KS74C100
Industrial accelerometer
Accessories
001
Hand-held probe M5 (male) For rotation speed and angle measurement
003
Stud bolt M5 x 8
008
Rare-earth magnetic base, M5 (male)
010-TNC-BNC-1.5
low noise, TNC / BNC, 1.5 m, Ø 2,7 mm, 120 °C
029
Adhesive pad, insulating, M5 (male)
030
Triaxial mounting cube 3 x M5
045
Stud adapter M5 (male) / UNF 10-32 (male)
046
Stud adapter M5 (male) / 1/4″-28 (male)
M14
Vibration monitoring
M29
IEPE supply module
Downloads
KS74C100
