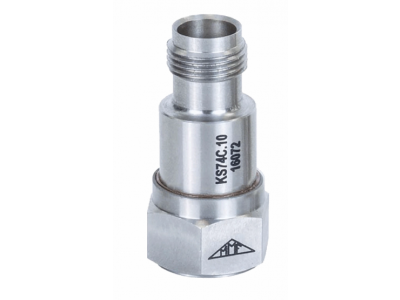

KS74C10

Industrial Accelerometer

MMF

  • Low weight
  • With insulated base avoiding ground loop problems
  • Rugged stainless steel case
  • Particularly low temperature coefficient
  • Two sensitivity versions (10 and 100 mV/g)

Details

These piezoelectric vibration transducers are designed for harsh industrial environments. They feature protection against dust and water, along with insulated mounting bases to prevent ground loops that can introduce noise into the sensor signal, particularly near high-power equipment.



Specifications

Type
Voltage Mode (IEPE)
Material
Stainless Steel
Mounting
M5 Thread
Connection
Axial
TNC
Min Temperature
-30 °C
Max Temperature
130 °C
Ingress Protection
IP64
Lower frequency limit (3 dB)
0.12 Hz
Upper frequency limit (3 dB)
21 kHz

Models

KS74C10
Industrial accelerometer

Accessories

001
Hand-held probe M5 (male) For rotation speed and angle measurement
003
Stud bolt M5 x 8
008
Rare-earth magnetic base, M5 (male)
010-TNC-BNC-1.5
low noise, TNC / BNC, 1.5 m, Ø 2,7 mm, 120 °C
029
Adhesive pad, insulating, M5 (male)
030
Triaxial mounting cube 3 x M5
045
Stud adapter M5 (male) / UNF 10-32 (male)
046
Stud adapter M5 (male) / 1/4″-28 (male)
M14
Vibration monitoring
M29
IEPE supply module

Downloads

KS74C10
Datasheet
