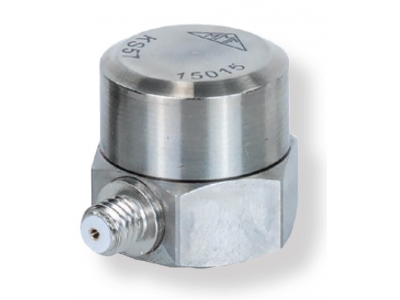

General purpose shear-type accelerometer.
KS57
High Temperature Accelerometers
MMF
- Low sensitivity to temperature transients
- Low influence of base bending effects
- charge mode does not need external power
- Wide dynamic range
- Operating temperature up to 250 °C (480 °F)
- High resonant frequency
- Durable stainless steel housing
Details
Specifications
Type
Charge Mode
# of Axis
1
Full Scale
3000 g
Output
15 pC/g
Material
Stainless Steel
Models
KS57
Accessories
001
Hand-held probe M5 (male) For rotation speed and angle measurement
003
Stud bolt M5 x 8
006
Insulating flange 2 x M5 (male)
008
Rare-earth magnetic base, M5 (male)
009-UNF-BNC-1,5
Low-noise cable UNF 10-32 / BNC; 1,5 m
009-UNF-UNF-1,5
Low noise cable UNF 10-32 / UNF 10-32; 1,5 m
009/T-UNF-UNF-1,5
High-temperature low-noise cable UNF 10-32 / UNF 10-32; 1,5 m
010-UNF-BNC-5
low noise, UNF 10-32 to BNC, 5 m, Ø 2,7 mm, 120 °C
Model 003
Threaded Mounting Stud, M5
Model 045
Threaded Adapter, M5 to 10-32
