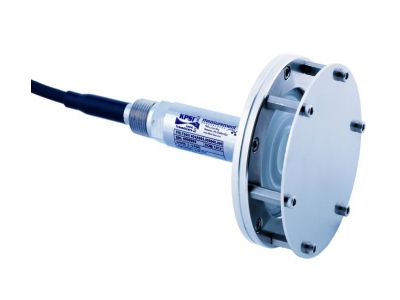

The KPSI 730 is a submersible hydrostatic level transducer with a 2.75" elastomeric diaphragm and protective cage specifically designed to meet the adverse environments encountered in wastewater applications. This suitably-sized transducer features a wide sensing area comprised of a PTFE coated elastomeric diaphragm for reliable operation in highly viscous or slurry environments.
KPSI 750
Analog Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- Multiple Analog Outputs
- IP68, NEMA 6P
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
10 - 115 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±0.25 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI 750
Customizable Level Sensor
Downloads
KPSI 750 Submersible Level Transducer
