The KPSI 710 submersible hydrostatic level transducer is designed for small bore applications and to meet the harsh environments found in liquid level measurement and control. It can be configured to perform to specifications under most adverse, reactive conditions and utilizes a highly accurate pressure sensor assembly specifically designed for hostile fluids and gases.

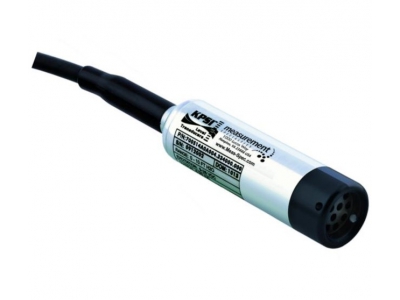

KPSI 710
Analog Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented, Sealed or Absolute Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- IP 68, NEMA 6P
- Multiple Analog Outputs
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
2.3 - 700 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±0.50 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI 710
Customizable Level Sensor
