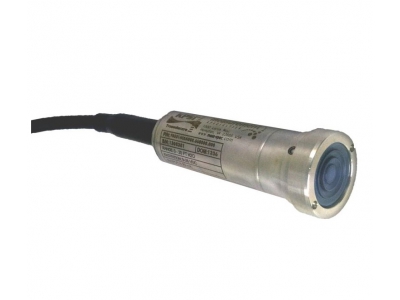

The KPSI 705 submersible hydrostatic level transducer with an elastomeric diaphragm is designed for small bore applications and to meet the harsh environments found in wastewater applications. The sensor features a wide PTFE-coated sensing area for reliable operation in highly viscous or slurry environments.
KPSI 705
Analog Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented or Sealed Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- Multiple Analog Outputs
- IP 68, NEMA 6P
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
6 - 115 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±0.25 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI 705
Customizable Level Sensor
