The KPSI 700 submersible hydrostatic level transducer specifically designed to meet the rigorous environments encountered in liquid level measurement and control. It can be configured to perform to specifications under most adverse, reactive conditions.
All MEAS KPSI Transducers utilize a highly accurate pressure sensor assembly specifically designed for hostile fluids and gases.

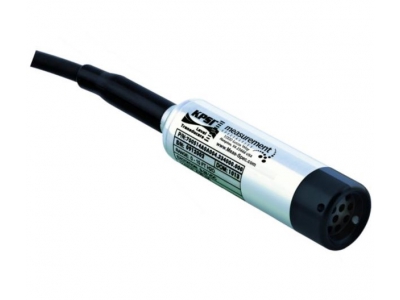

KPSI 700
Analog Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented, Sealed or Absolute Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- Multiple Analog Outputs
- IP 68, NEMA 6P
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
2.3 - 700 ft
Output
0 - 2.5 V DC
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
0 - 4 V DC
0 - 5 V DC
0 - 10 V DC
1.5 - 7.5 V DC
4 - 20 mA
Precision
±1.00 % FS
Excitation
9 - 28 V DC
10 - 28 V DC
15 - 28 V DC
10 - 28 V DC
15 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI 700
Customizable Level Sensor
