The KPSI 500 submersible hydrostatic level transducer represents the leading edge of level sensing technology available today. Incorporating a highly stable media-isolated sensor, it features SDI-12 serial-digital interface; a standard for interfacing data recorders with microprocessor-based sensors, especially in the environmental monitoring field.
It is intended for applications with requirements that include battery-powered operation with minimal current drain, low system cost, and use of a single recorder with multiple sensors “daisy-chained” on one cable. It will accommodate cable lengths between sensors and recorder up to 200 feet.

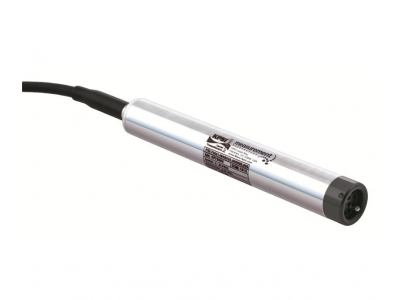

KPSI 500
Digital Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- SDI-12 Interface
- IP 68, NEMA 6P
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
10 - 230 ft
Output
RS-485
SDI
SDI
Precision
±0.05 % FS
±0.10 % FS
±0.10 % FS
Excitation
6 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI 500
Cusotomizable Level Sensor
Downloads
KPSI 500 Submersible Level Sensor
