The KPSI 351 submersible hydrostatic level transducer is specifically designed for small bore high accuracy applications and to meet the rigorous environments encountered in ground water level measurements. Incorporating a highly stable media-isolated sensor, it features SDI-12 serial-digital interface; a standard for interfacing data recorders with microprocessor-based sensors, especially in the environmental monitoring field.
Intended for applications with requirements that include battery-powered operation with minimal current drain, low system cost, and use of a single recorder with multiple sensors “daisy-chained” on one cable. It will accommodate cable lengths between sensors and recorder up to 200 feet. Our new removable cable option allows easy substitution of transducers and cables.

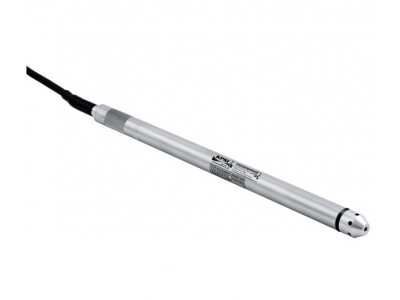

KPSI 351
Digital Submersible Level Transducer
TE-Connectivity - Measurement Specialties - PSI
- Vented Gauge Transducer
- Fully Submersible, Probe Based
- Media: Hostile Fluids & Gases
- Welded 316 Stainless Steel or Titanium Housing
- SDI-12 Interface
- IP 68, NEMA 6P
- 2-Year Warranty
Details
Specifications
Type
Fully Submersible
Full Scale
10 - 50 ft
Output
RS-485
SDI
SDI
Precision
±0.10 % FS
Excitation
6 - 28 V DC
IP Rating
IP68
NEMA 6P
NEMA 6P
Min Temperature
-20 °C
Max Temperature
60 °C
Models
KPSI-351
Customizable Level Sensor
Downloads
KPSI 351 Submersible Level Sensor
