KLR

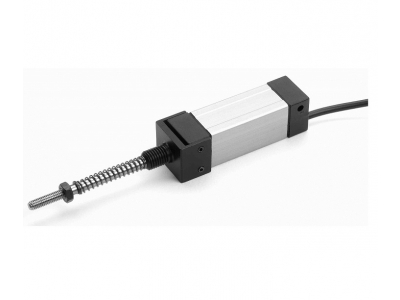

Return Spring Conductive Plastic Potentiometric Position Transducer

Novotechnik

  • Potentiometer with Return Spring
  • Miniature
  • Rectangular Profile Housing
  • Anodized Aluminum Housing
  • Connection: 1m Integral Cable
  • Long Life up to 10 Million Movements

Specifications

Type
Potentiometer
Full Scale
100 mm
250 mm
500 mm
Output
Potentiometric
Non-Linearity
±1.00 % FS
Resolution
0.10 mm
Excitation
0 - 20 V DC
IP Rating
IP65
Min Temperature
-25 °C
Max Temperature
75 °C

Models

KLR

Downloads

KLR Return Spring Conductive Plastic Potentiometric Position Transducer
Datasheet
