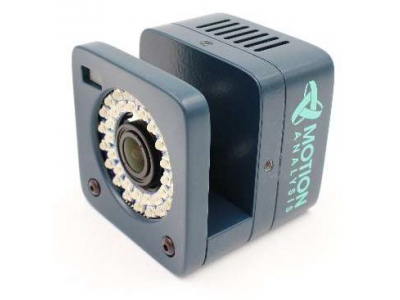

Designed for versatility and accuracy, the Kestrel 4200 Plus camera stands out with its 4.2 Megapixels frame size, delivering crystal-clear images at a resolution of 2048 x 2048. It is capable of recording at a frame rate of 200 fps at full resolution, extending up to a maximum of 10,000 fps, making it exceptionally suited for capturing rapid movements with high precision. The camera features a global shutter mechanism to eliminate motion blur, ensuring every detail is captured with clarity.
The Kestrel 4200 Plus is designed for ease of integration, powered through standard Cat5E cables for Power over Ethernet, and supports Ethernet and Sync in/out connections. With its robust design, including a 12-36 mm varifocal lens and optional super-wide lens, this camera is adaptable to a wide range of settings. The device also includes an integrated Near Infrared (NIR) or Full Infrared (FIR) ring light with adjustable illumination, enhancing its functionality in various lighting conditions.
The camera operates optimally within a temperature range of 10° to 25°C (50° to 77°F) and is constructed to withstand storage temperatures from -40° to 65°C (-40° to 149°F). Its durability is complemented by its plug-and-play compatibility and IP addressable features, making it a flexible choice for unlimited camera system configurations.
| Feature | State |
|---|---|
| Plug and play compatibility | Yes |
| System connectivity | Gigabit Ethernet |
| Custom control interface | Yes |
| Camera number indicator | Yes |
| Integrated camera display panel | No |
| Insight auto-focus | Yes |
| Communication status indicators | Yes |
| Maximum number of cameras | Unlimited |
| Multiple camera types in system | Yes |
| Genlock to external video source | Yes |
| Synchronize to external signal | Yes |
| IP addressable | Yes |
| IP reconfigurable | Yes |
| External A/D sync and clock | Yes |
