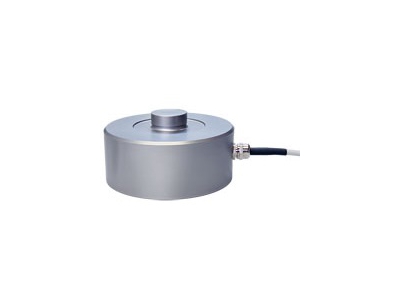

The model K-450 load cell is designed as a flat, circular disc. These load cells are offered for compression only applications where space is limited. This load button is a direct replacement for many of the same type and bolt patterns currently used in the industry. The matching surface must be flat and at least 2 inches in diameter. The loading diameter is slightly convex for accurate load distribution. These sensors are manufactured in stainless steel and the sensing element incorporates bonded foil strain gauges of the highest quality. They are sealed for protection against most industrial environments.
K-450
All-Purpose
Lorenz Messtechnik GmbH
- Compression
- Accuracy Class: ±0.1% or ±0.3%
- Outer Diameter: 49.5mm - 150.0mm
- Height: 30.0mm - 80.0mm
- Connection: 3m Integral Cable
- Stainless Steel
Details
Specifications
Type
Load Button
Application
Compression
Full Scale
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
112000 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
45000 lbs
112000 lbs
Output
2 mV/V
Precision
±0.1 % FS
±0.3 % FS
±0.3 % FS
Excitation
2 V - 12 V DC
IP Rating
IP67
Min Temperature
-10 °C
Max Temperature
70 °C
Models
K-11 to K-2529
K-450
Downloads
K-450 Compression Force All-Purpose Sensor
