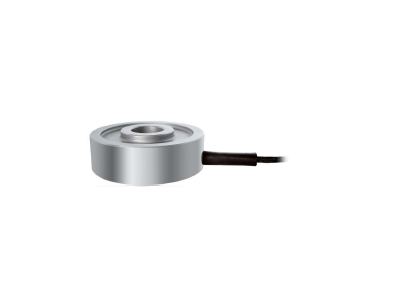

The miniature ring load cell K-14 have been specially designed to show-up with small external dimensions. These sensors can be used for a wide range of industrial and laboratory applications due to their small size. The small diameter and height make this miniature ring load cell perfect for installation in structures, in which the measured force is guided directly through the sensor after disconnection.
K-14
Thru-Hole
Lorenz Messtechnik GmbH
- For Press-In Force Control
- Compression
- Accuracy: ±0.5%
- Outer Diameter: 30.0mm - 78.0mm
- Inner Diameter: 5.2mm - 27.0mm
- Height: 9.5mm - 25.0mm
- Connection: 3m Integral Cable
Details
Specifications
Type
Thru-Hole
Application
Compression
Full Scale
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
Output
1 mV/V
Precision
±0.5 % FS
Excitation
2 V - 12 V DC
IP Rating
IP60
Min Temperature
0 °C
Max Temperature
60 °C
Models
K-11 to K-2529
K-14
Downloads
K-14, Compression Force Sensor
