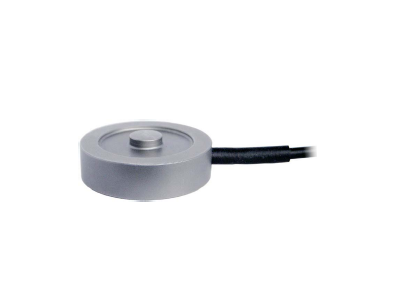

The sub-miniature compression load cell K-13/K-13B are flat, cylindrical with covered bottoms. The load application button for receiving the compression forces is an integrated part of the top, which is the sensor's membrane.The connecting cable of the load cell features a covered correction network on a small board. The sensor's temperature compensation is installed here. Due to its extremely small dimensions, this model is perfect for use in applications with limited space. The small diameters result in high resonance frequencies.
K-13/K-13B
Miniature
Lorenz Messtechnik GmbH
- For Press-In Force Control
- Compression
- Accuracy: ±0.5%
- Integrated Overload Protection (option)
- Outer Diameter: 32.0mm - 79.0mm
- Height: 20.0mm - 50.0mm
- Connection: 3m Integral cable
Details
Specifications
Type
Load Button
Application
Compression
Full Scale
2.2 lbs
4.5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
4.5 lbs
11.2 lbs
22 lbs
45 lbs
112 lbs
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
Output
1 mV/V
Precision
±0.5 % FS
Excitation
2 V - 6 V DC
2 V - 12 V DC
2 V - 12 V DC
IP Rating
IP60
IP65
IP65
Min Temperature
0 °C
Max Temperature
60 °C
Models
K-11 to K-2529
K-13
K-13B
Downloads
K-13/K-13B, Mini Compression Force Sensor
