Its complex design with integrated support membranes reduces additional construction effort for external overload protection or guidance of force of applied parts in many applications. This requires little space, has little material and weight and almost no component friction, which could falsify the measurement result.

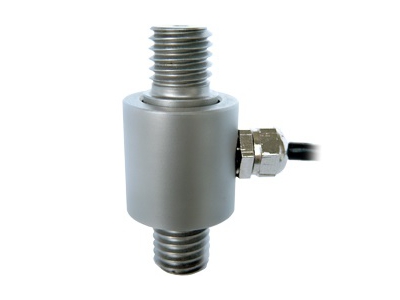

K-100
Miniature
Lorenz Messtechnik GmbH
- Tension
- Accuracy: ±0.3%
- Outer Diameter: 14.0mm - 35.0mm
- Height: 35.0mm - 70.0mm
- Connection: 3m Integral Cable
- Stainless Steel (Measuring Body)
- Aluminum (Material Housing)
Details
Specifications
Type
Rod Type
Application
Tension
Full Scale
220 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
450 lbs
1120 lbs
2200 lbs
4500 lbs
11200 lbs
22000 lbs
Output
1 mV/V
Precision
±0.3 % FS
Excitation
2 V - 12 V DC
IP Rating
IP65
Min Temperature
0 °C
Max Temperature
60 °C
Models
K-100
K-11 to K-2529
