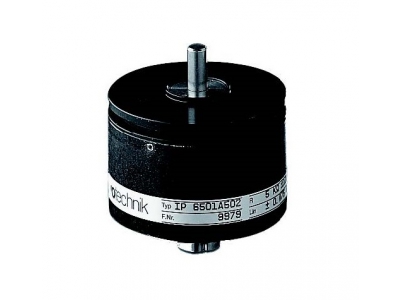

IP6000

Rotary Displacement Potentiometer

Novotechnik

  • Industrial Grade Potentiometer
  • Anodized Aluminum Housing
  • Stainless Steel Shaft
  • 14 mm Shaft
  • Connection: 5-pin Connector
  • Long Lifetime
  • Special Versions Available on Request

Specifications

Type
Potentiometer
Full Scale
355°
Max Speed
2000 RPM
Output
Potentiometric
Non-Linearity
±0.025 % FS
±0.075 % FS
Resolution
Infinitesimal
Excitation
0 - 42 V DC
IP Rating
IP65
Min Temperature
-40 °C
Max Temperature
100 °C

Models

IP6000

Downloads

IP6000 Rotary Potentiometric Angle Displacement Sensor
Datasheet
