imc WAVE

Sound and Vibration Analysis Software

imc Test & Measurement

  • Analysis platform for sound & vibration testing with imc measurement systems
  • Analyzers based on standardized test routines
  • Acoustics in the context of a universal measuring system
  • Additional synchronized data acquisition of signals such as force, pressure, strain, temperature, GPS, etc - for analsyses and correlations
  • CAN vehicle bus integration

Details

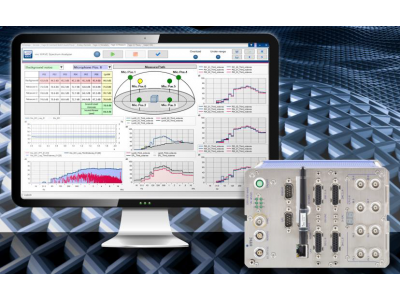

With imc WAVE, you are provided with a powerful software platform for noise and vibration analysis. Various analyzers cover a wide range of applications: from acoustical inspections during road tests, structural analyses on the test bench, up to vibration testing.

With imc WAVE, you can quickly and easily solve a wide variety of tasks in sound and vibration analysis. The well guided work flow will lead you step by step through the parameter settings for your specific application. From the device configuration through the microphone calibration procedure up to starting the measurement, imc WAVE offers a simple operating concept.

Spectrum Analyser

  • Sound power-level testing
  • Octave & 1/3-octave analysis
  • Frequency and time weighting
  • Vibration analysis
  • FFT analysis

Structural Analyzer

  • Calculation of transfer functions (magnitude and phase)
  • Coherences
  • Auto-spectra & DOFs
  • Export to Excel or modal analysis software ME Scope

Order Tracking Analyzer

  • Order tracking spectra based on measured RPM
  • Noise & vibration levels vs. RPM (various classifications)
  • Transfer functions vs. time and angle

Models

imc Wave

Related

CRFX-2000

The CFRX-2000 base unit provides the core features of the imc CRONOSflex data acquisition system extended by online processing. Extensive real-time processing together with digital I/O and analog output a complete measurement and control system.

CRFX/AUDIO2-4

The AUDIO2-4 measurement module has four individual, galvanically-isolated channels for the acquisition of IEPE/ICP sensors and voltage. Direct connection of ICP-compatible sensors takes place via BNC connectors.

CRFX/ICPU2-8

The ICPU2-8 broadband measurement amplifier is for the measurement of IEPE/ICP sensors and voltage (AC and DC coupling). Direct connection of ICP-compatible sensors takes place via BNC connectors.

CRFX/ISO2-8

The ISO2-8 module is an isolated, differential measurement amplifier with 8 floating channels for high-precision measuring voltage and current, temperature and IEPE/ICP sensors.

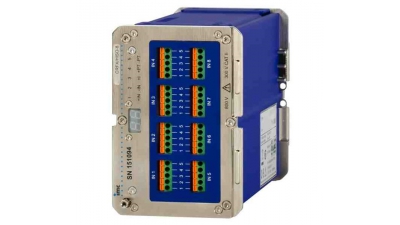

CRFX/HISO-8

The CRFX/HISO-8 high-isolation module enables measurement of low voltage signals riding on a high or indeterminate common mode level of up to 800 V, including voltage, temperature and current.

CRFX/HV2-2U2I

The CRFX/HV2-2U2I amplifier has 4 channels, 2 of which can be used for measuring voltages up to 1000 V and 2 of which are available to measure with current probes.

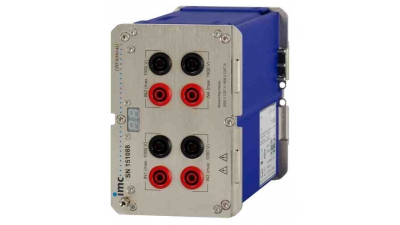

CRFX/HV2-4U

The CRFX/HV2-4U module is ideally suited for isolated measurements of voltage signals up to 1000 V, as encountered in power quality monitoring and power efficiency analysis of electrical drive systems or hybrid vehicles.
