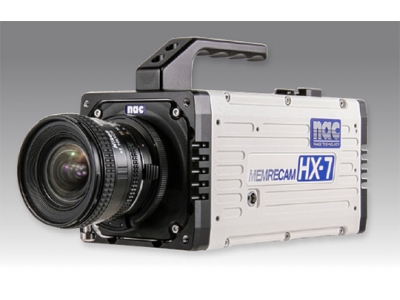

NAC’s compact, lightweight MEMRECAM HX-7 offers an astounding 5 Mega Pixel resolution at up to 800 fps, Full HD resolution at up to 2,000 fps, 1 Mega Pixel resolution at up to 3,600 fps, and so much more! The HX-7 gives the user the best possible solutions: the highest resolutions available, the highest light sensitivity available, true mobility and stand-alone performance, and ultra fast imaging.
HX-7
High Speed Camera System
NAC Image Technology
- CMOS Sensor: 2560 X 1920 Active Pixels
- Bit Depth: Customer Selectable - 12/10/8 Bit
- Electronic Shutter: 10 msec to 1.1 usec
- Standalone operation, compact, lightweight camera
- Simultaneous record and download
- Enhanced data protection with fast download
- Versatile recording
Details
Specifications
Max Resolution
2560 X 1920
Max Frame Rate
200,000 fps
FPS (@ Max Res)
800
Output
Ethernet
Models
HX-7
Downloads
HX-7 Datasheet
